Drone Nexus I Squared 6.5 x 22 Deck Black
Brand
DroneWeight | 1835 |
---|---|
Concave | Yes |
Deck Neck | Welded |
Deck Width | 165 mm |
Deck Length | 559 mm |
Headtube angle | 84 |
Headtube height | 105 |
Footspace | 420 |
Deck-end | Box-end |
Griptape | No |
Deck | Wheel Diameter Compatibility | 100, 110, 115, 120 |
Wheel Hub Width Compatibility | 24 mm |
Deck | Wheel PU Width Compatibility | 24 mm, 26 mm, 28 mm, 30 mm |
Brake type | Flex brake |
Heat treatment | T6 |
Material | Aluminium |

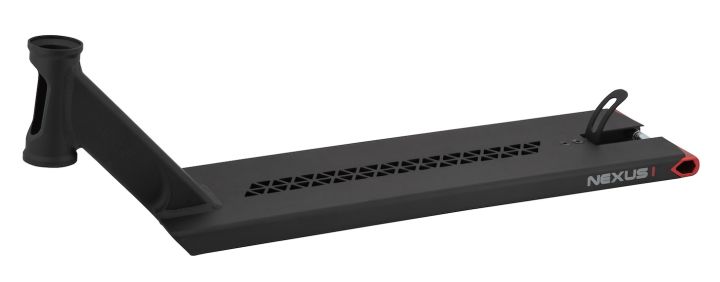

The NEXUS 1 Deck is our new flagship street deck.
We have designed every element of this deck to make it one of the lightest but strongest 6” and 6.5" wide decks on the market.
The 84 degree headtube and neck has been extruded and then CNC'd and has been designed with a wider base to account for the bigger stresses created by a larger deck plate and heavier street riding. The headtube has been simplified to make sure the welding area in-between the neck and headtube is flat and optimized for strength, and also features weight reducing fluting and cut-outs externally and internally.

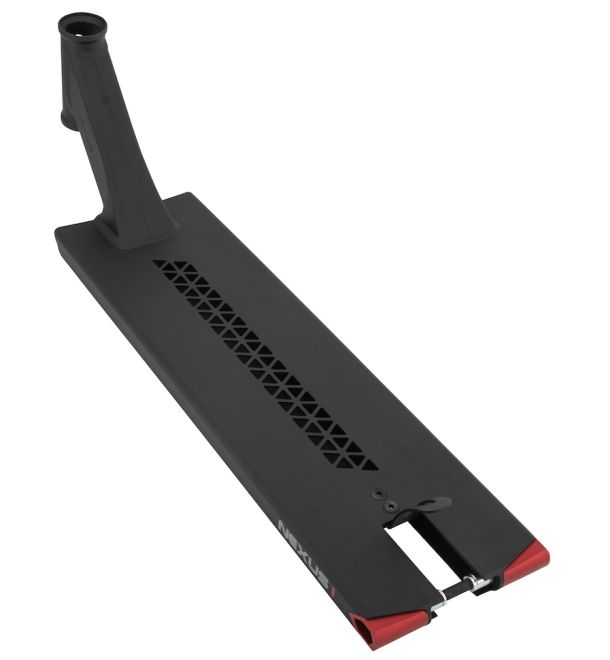

The Extrusion will now be 6” and 6.5” with a perforated foot plate to reduce weight while also being easy to griptape over so that the rider is not limited by a large cut out through the top.
The deck will come with a steel feather-light brake as we found plastic brakes too weak in testing and a single hex key tightening replaceable aluminium back ends that are deeper set into the extrusion.
The base also has a cut out and the blunt plate is integrated into the neck of the deck.
